Java enumerations

Enumerations are custom Java objects you define and use inside of your Business Objects. They are used to define a preset value set for a particular type.

For simplicity, let's assume that a Java Enumeration has a Name and multiple Labels (or Types). Here is a common example of a Java Enumeration:

public enum Day
{
MONDAY, TUESDAY, WEDNESDAY, THURSDAY, FRIDAY;
}

The Day enumeration has 5 different Labels {Day.MONDAY, Day.TUESDAY, Day.WEDNESDAY, Day.THURSDAY, and Day.FRIDAY}. All of these labels are all considered of type Day. So if a method signature accepts a Day type, it will accept all 5 of these defined labels.

public class Person
{
private Day iPayDay = null;

public Day getPayDay() {return iPayDay;}
public void setPayDay(Day aValue) {iPayDay = aValue;}
}

Here is an example of a call to the setPayDay(Day) method:

Because Day.MONDAY is of type Day, the setting of the value is complete.

Note: Prior to Version 5.2, business rules could only set basic Data Types into Business Objects. Basic data types included String, Long, long, Integer, int, and Boolean.

Business rule execution can also set your business object's Enumeration values.Corticon performs this by matching Labels in your business object's enumerations with the Custom Data Type (CDT) labels defined in your Vocabulary.

Java Enumeration Label Names for enum Day:

Now, the Vocabulary must have these same Labels defined in the CDT that is assigned to the attribute.

Figure 295. Vocabulary CDT Labels must match Business Object Enumeration Labels (Types)

Figure 296. Vocabulary Mapper found correct Metadata based on matching enumeration labels

The key to metadata matching is the Labels – as long as your BO enumeration labels match the Vocabulary's CDT Labels, it should work fine. So what happens if the Labels do NOT match?

Extra validation has been added to the Vocabulary to help identify this problem. The example below shows a Label mismatch:

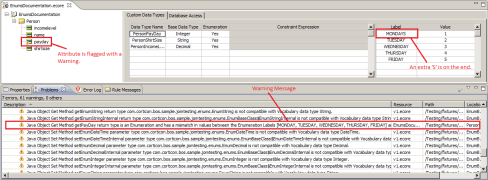

Figure 297. Vocabulary CDT Label / Object Enumeration Label Mismatch

Notice the Vocabulary attribute is flagged with the small orange warning icon (shown in the upper left of the figure above). The associated warning message states:

Java Object Get Method getPayDay return type is an Enumeration and has a mismatch in values between the Enumeration Labels [MONDAY, TUESDAY, WEDNESDAY, THURSDAY, FRIDAY] and Custom Datatype Labels [MONDAYS, TUESDAY, WEDNESDAY, THURSDAY, FRIDAY].
