Finding entity, attribute and association references
When working on large projects with many assets, it a real convenience to find everywhere an entity, attribute, or association is referenced in the project. This allows you to do impact analysis before modifying a vocabulary. This feature reveals the vocabulary item's usage and impact, and lets you easily navigate to each instance. Now, just right-click on an entity, attribute, or association name in the Vocabulary editor, and then select Find References to initiate a search, as shown:

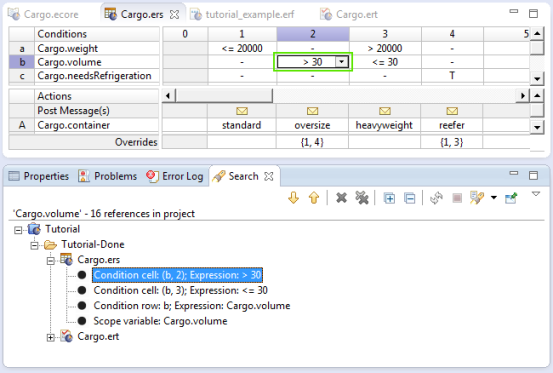

The search examines all Rulesheets, Ruleflows, and Ruletests in the project, then lists each match within each asset. Double-clicking on a match opens the asset and puts the focus at that location, as shown:

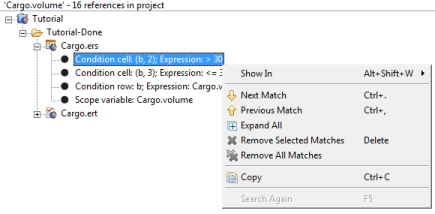

Right-clicking on a match presents a menu of navigation options and their keyboard shortcuts, as shown:

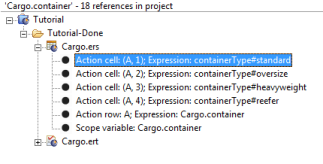

When the attribute is a custom data type, the search results indicate the Data Type Name and value, as shown:

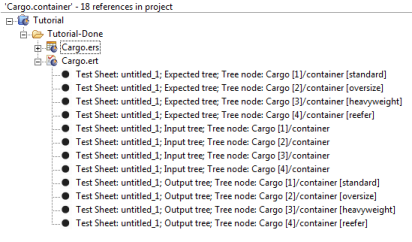

When results are in Ruletests, the results detail the testsheet, tree, and node, as shown:
