Creating a schema in the database
Once a Vocabulary has database persistence, entity identity, datastore caching specified on each participating entity, the Vocabulary can create a corresponding schema in the database.
In the Vocabulary editor, choose the menu command Vocabulary > Database Access > Create/Update Database Schema. The following alert window opens:

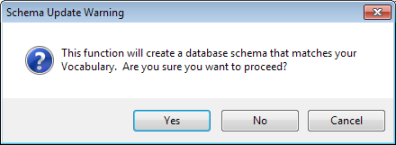

Figure 315. Schema Update Warning Message
The alert warns if a schema already exists in the database connected to this Vocabulary, as the Create/Update Database Schema function will change it.
Click Yes to proceed. When the create/update process succeeds, you see the following alert:
Figure 316. Database Schema Update Success Message
Click OK to dismiss the notification.
The database schema has been setup. Review the database to see the tables and their key assignments.
